PRODUCTS INFORMATION

PARTS FEEDERS

KF SeriesD-15KF

KF series Daishin Parts Feeders, 250~300Hzd is the only high-frequency vibrations to drive the body.
Leaf spring, without the variation of the spring is manufactured to high precision machining by yieldsstable high-frequency vibrations. Are widely used as a general screening for microscopic work.

Order form(example)

DName Manufacturer
-
15KFBody style
-
RProvide direction
R:Clockwise
L:Anti-clockwise
-
1Voltage
1:100V
2:200V

Characteristic

Adjustment,easy to maintain.
Placement of a spring plate,and introduced its own way of mounting angles.Easily adjusted by greatly simplifying maintenance of the mechanical confiquration.

Two. Durability and reliability achieved in higher dimensions.
Vibration exercise is a very stable good adjustment transmission capacity,durability and reliability is a top-class talent.

The work is widely supported at all.The models with a rich variety of alignment methods to accommodate a wide range of large components from small parts in general.

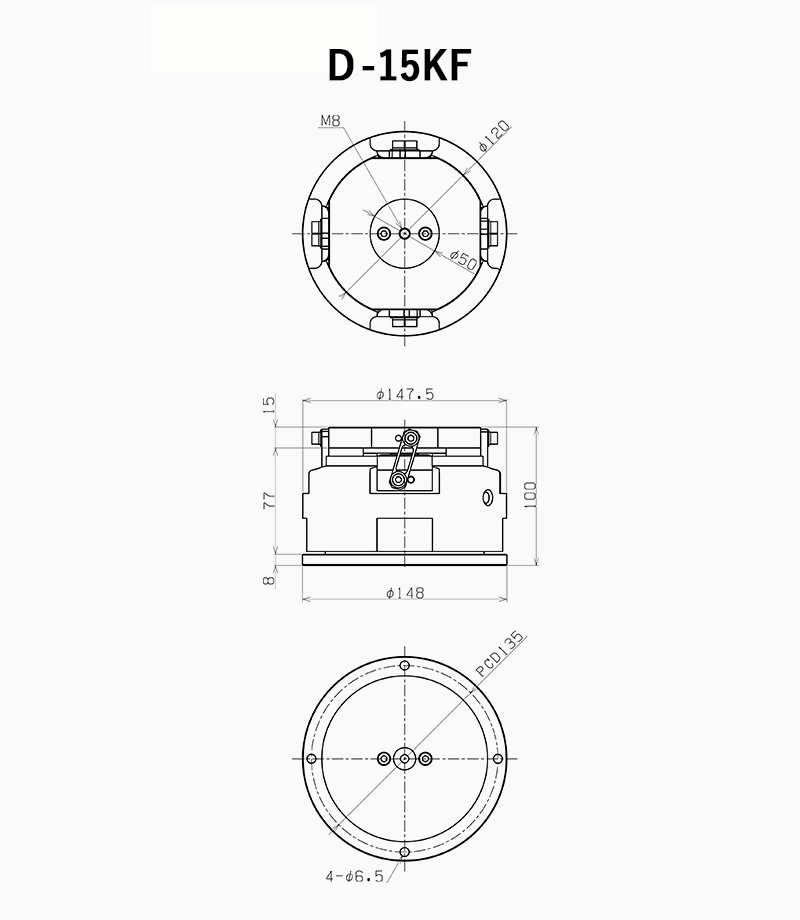

Dimensions

Unit:mm

Specifications

Format Weight(Kg) Input Voltage(V) Rated Current(A) Frequency(time/min) Bowl Diameter Applicable Applicable Controller
D-15KF 8.5 100 / 200 0.5 / 0.25 12,000~21,000 φ170~220 IMX-1

KFL SeriesD-10KFL / D-15KFL

KFL series Daishin Parts Feeders, 250~300Hzd is the only high-frequency vibrations to drive the body.
In addition, height adjustment, XY is adjust the direction and with. Leaf spring, without the variation of the spring is manufactured to high precision machining by yieldsstable high-frequency vibrations. Are widely used as a general screening for microscopic work.

Order form(example)

DName Manufacturer
-
15KFLBody style
-
RProvide direction
R:Clockwise
L:Anti-clockwise
-
1Voltage
1:100V
2:200V

Characteristic

Adjustment,easy to maintain.
Placement of a spring plate,and introduced its own way of mounting angles.Easily adjusted by greatly simplifying maintenance of the mechanical confiquration.

Two. Durability and reliability achieved in higher dimensions.
Vibration exercise is a very stable good adjustment transmission capacity,durability and reliability is a top-class talent.

The work is widely supported at all.The models with a rich variety of alignment methods to accommodate a wide range of large components from small parts in general.

Dimensions

Unit:mm

Specifications

Format Weight(Kg) Input Voltage(V) Rated Current(A) Frequency(time/min) Bowl Diameter Applicable Applicable Controller
D-10KFL 4.5 100 / 200 0.5 / 0.25 12,000~21,000 φ120~160 IMX-1
D-15KFL 9.0 100 / 200 0.5 / 0.25 12,000~21,000 φ170~220 IMX-1

HF SeriesD-15HF / D-20HF

Daishin Parts Feeders HF series, IX and use a series controller, the driving frequency at 110Hz~180Hz. Most suitable for small parts, especially work.

Order form(example)

DName Manufacturer
-
15HFBody style
-
RProvide direction
R:Clockwise
L:Anti-clockwise
-
1Voltage
1:100V
2:200V

Characteristic

Adjustment,easy to maintain.
Placement of a spring plate,and introduced its own way of mounting angles.Easily adjusted by greatly simplifying maintenance of the mechanical confiquration.

Two. Durability and reliability achieved in higher dimensions.
Vibration exercise is a very stable good adjustment transmission capacity,durability and reliability is a top-class talent.

The work is widely supported at all.The models with a rich variety of alignment methods to accommodate a wide range of large components from small parts in general.

Dimensions

Unit:mm

Specifications

Format Weight(Kg) Input Voltage(V) Rated Current(A) Frequency(time/min) Bowl Diameter Applicable Applicable Controller
D-15HF 8.0 100 / 200 0.5 / 0.25 5,500~9,000 φ170~220 IMX-1
D-20HF 16.0 100 / 200 0.7 / 0.35 5,500~9,000 φ200~270 IMX-2

From Shinshu to the world

A Sophisticated Parts Feeder will change the way you manufacture!
